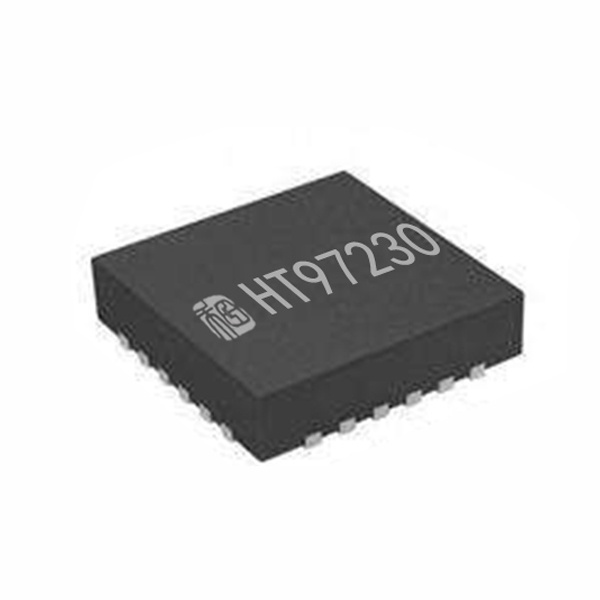

HT97230
带有3D环绕和低音增强的125mW免输出耦合电容 立体声线路驱动器/耳机放大器
HT97230为差分打印打出的、可进行打印打出的的线路图动力软件器/苹果头戴式耳机放小器。5V供气时,元元件为1kΩ电机电流带来了3VRMS打印打出的动力软件;3.3V供气时,为600Ω电机电流带来了2VRMS打印打出的动力软件。5V供气时,元元件为32Ω苹果头戴式耳机电机电流带来了125mW动力软件。IC存在6dB组织结构稳固增加收益,也可利于外链热敏电阻功率如何放置增加收益(如今仅带来了外链热敏电阻功率如何放置增加收益的版本的,另外的的版本的需网上预订)。IC在全部整个声频频段内带来了优等的THD+N。

HT97230有两个不同开启时间(tON)版本,版本A、C和E的导通时间tON为5.5ms,用于耳机驱动;B和D则具有130ms的tON,用于机顶盒设计(目前仅提供A版本,其他版本需预定)。内部电荷泵对输入电源反相,产生负电源。放大器的输出级由输入正电源和电荷泵输出负电源供电,双极性供电使得输出偏置在零电位,省去了大尺寸、容易引入失真的输出耦合电容。ICSD开关时没有咔嗒/噼噗声。

HT97230拥有3D缠绕模式切换切换,才可以在立体图声耳麦上带来3D缠绕声的体验。HT97220再有拥有低音促进模式切换切换,可重要依据耳麦频响性能特点,对个别频段的低音实施各种度的完善促进,达成低音促进的成果。HT97230保证无铅无卤QFN24L-PP装封,保证QFN20L-PP装封的开发实际需求。
价格:¥ 库存99999
规模:
下载资料
优点
  • 3D旋转调节
  • 低音减弱可手动调节
  • 耳机子所在不同隔直电解电容,合理利用区域空间和资金,并提高系统低音
  • 优异的粉红噪声正品度
  • 区块链行业再次清除开关按钮SD的click-pop声
  • 脱俗的模糊标准,THD+N低于至0.001%
  • 翘楚的低频噪音信噪比,VN: 7uV, SNR:112dB
  • 可以全差分放入和单端放入
  • 效果的能力:125mW (fIN = 1kHz, VDD=5V, RL=32Ω, THD+N=1%);3Vrms (fIN = 1kHz, VDD=5V, RL=1kΩ, THD+N<0.1%);2Vrms (fIN = 1kHz, VDD=5V, RL=600Ω, THD+N<0.1%);
  • 极致精简版周围,QFN24L-PP 4mm*4mm装封
技术应用
  • 蓝牙蓝牙运动耳机
  • 智能化移动手机
  • 音响低音炮,DVD
  • 平板网上/记手提电脑网上
  • 机顶盒
  • 轻便式式手机数码产品

引脚定义

PINNAMEFUNCTION
1PVDDCharge-Pump Power-Supply Input. Bypass to PGND with 1uF.
2C1PPositive Flying Capacitor Connection. Connect a 1uF capacitor between C1P and C1N.
3PGNDPower Ground. Connect PGND and SGND together at the system ground plane.
4C1NNegative Flying Capacitor Connection. Connect a 1uF capacitor between C1P and C1N.
5PVSSNegative Charge-Pump Output. Bypass to PGND with 1uF.
6SGNDSignal Ground. Connect PGND and SGND, SGND1 together at the system ground plane.
7SGND1Signal Ground. Connect PGND and SGND, SGND1 together at the system ground plane.
8D3R3D control pin.
9INRNFRight channel feedback.
10BASSRRight channel Bass control output.
11INR+Right Positive Polarity Input
12INR-Right Negative Polarity Input
13SVDD2/TESTSignal Path Power-Supply Input. Bypass to PGND with 1uF. Connect directly to PVDD.
14OUTRRight Direct Drive Output
15BIASInternal Supply Node. Bypass to PGND with 0.1uF.
16OUTLLeft Direct Drive Output
17CTL3D and Bass function control.
18SVDDSignal Path Power-Supply Input. Bypass to PGND with 1uF. Connect directly to PVDD.
19INL-Left Negative Polarity Input
20INL+Left Positive Polarity Input
21BASSLLeft channel Bass control output.
22INLNFLeft channel feedback.
23D3L3D control pin.
24N_SHDNActive-Low Shutdown. Drive N_SHDN high for normal operation.

EPExposed Pad. Connect at the system ground plane.
